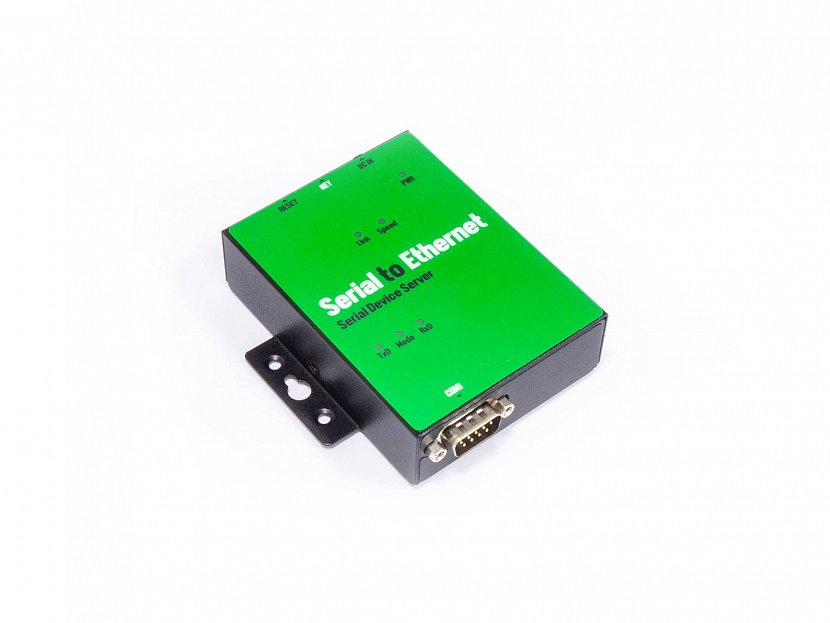

NCOM-111-M 1-Port Serial to Ethernet Serial Device Server (RS-232)



Features:



  • Adds a virtual serial COM port via network connection
  • Supports virtual serial port driver for Windows
  • Supports pair connection mode for connecting two serial device servers over a network without a PC
  • Easy-to-use Windows utility software for easy configuration and installation
  • 10/100Mbps Ethernet with auto-detection
  • Configuration via web console interface or utility software
  • Windows utility software automatically finds NCOM devices on the network
  • Firmware upgradable for future firmware revisions

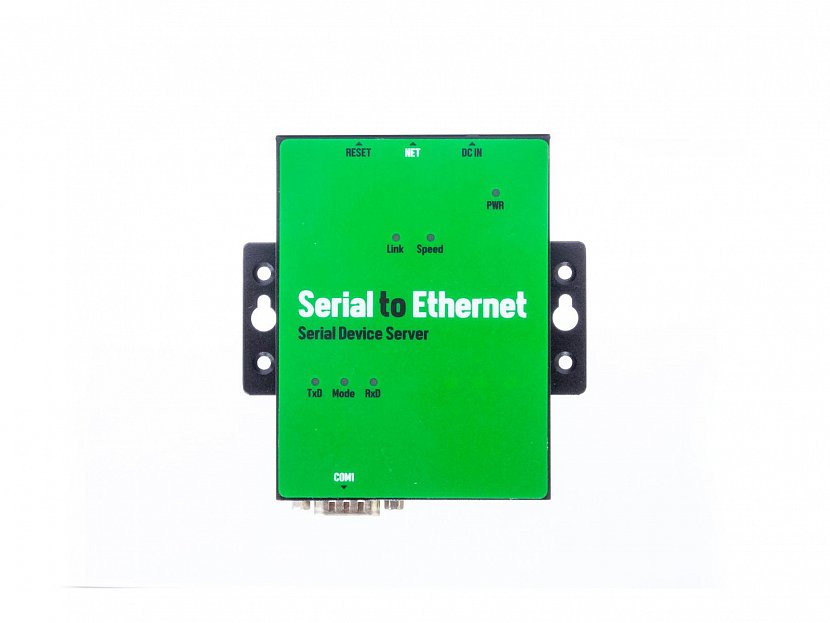

  • LEDs indicating Ethernet port’s link and speed statuses
  • LEDs indicating serial port’s TxD and RxD statuses
  • Data rates: 300bps to 921.6kbps
  • Built-in 15kV ESD protection for all serial signals
  • Fully supports “COM Port Control” protocol known as RFC2217
  • Supports network protocols such as TCP or UDP Client/Server
  • Supported RS-232 signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS
  • Supports Windows XP to 10, Windows Server 2003 to Server 2016



Specifications:



LAN
Ethernet10/100Mbps

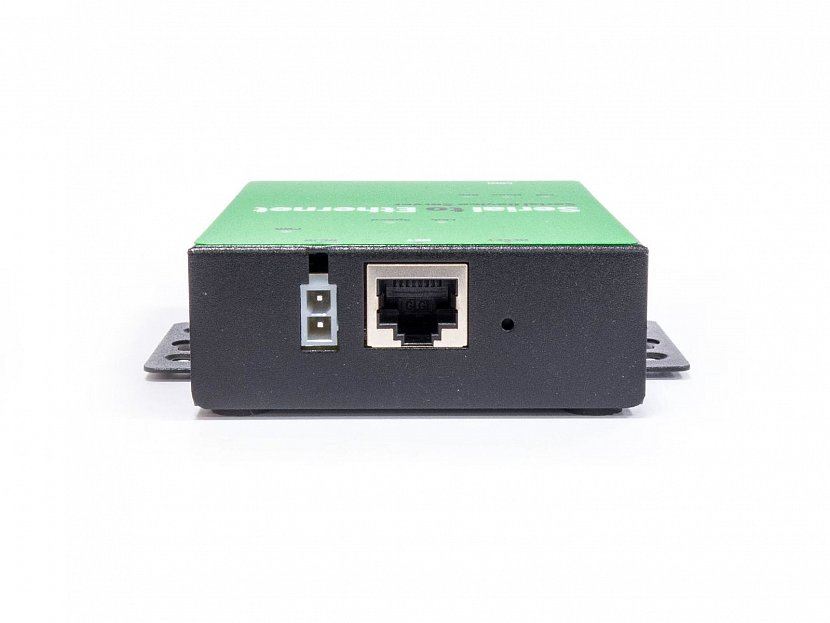

ConnectorRJ-45 connector
ProtectionBuilt-in 1.5kV magnetic isolation

Serial Interface
InterfaceRS-232
Number of Ports1
ConnectorDB9 male
Max. Speed921.6kbps for transmit & receive
RS-232 SignalsDCD, RxD, TxD, DTR, GND, DSR, RTS, CTS
Protection15kV for all signals

Serial Communication Parameters
Data Bits5, 6, 7, 8
ParityNone, odd, even, mark, space
Stop Bit1, 1.5, 2
Flow ControlHardware (RTS, CTS)

Software Features
ProtocolsICMP, IP, TCP, UDP, DHCP, DNS, HTTP
UtilityNCOM management tool for Windows OS
OS Driver SupportVirtual serial port driver for Windows OS
ConfigurationWeb console, Windows utility

Power
Power Input9VDC to 48VDC
Power Consumption120mA@12VDC, 48mA@48VDC

Environmental
Operating Temperature0 to 55°C (32 to 131°F)
Storage Temperature-20 to 75°C (-4 to 167°F)
Operating Humidity5% to 95% RH
Safety ApprovalsCE, FCC

Mechanical
CasingMetal
Dimensions97mm × 71mm × 22mm (L × W × H)
100mm x 91mm x 22mm (with DB9 connector and ears)
Weight205g

Ordering information
Part number       113011
